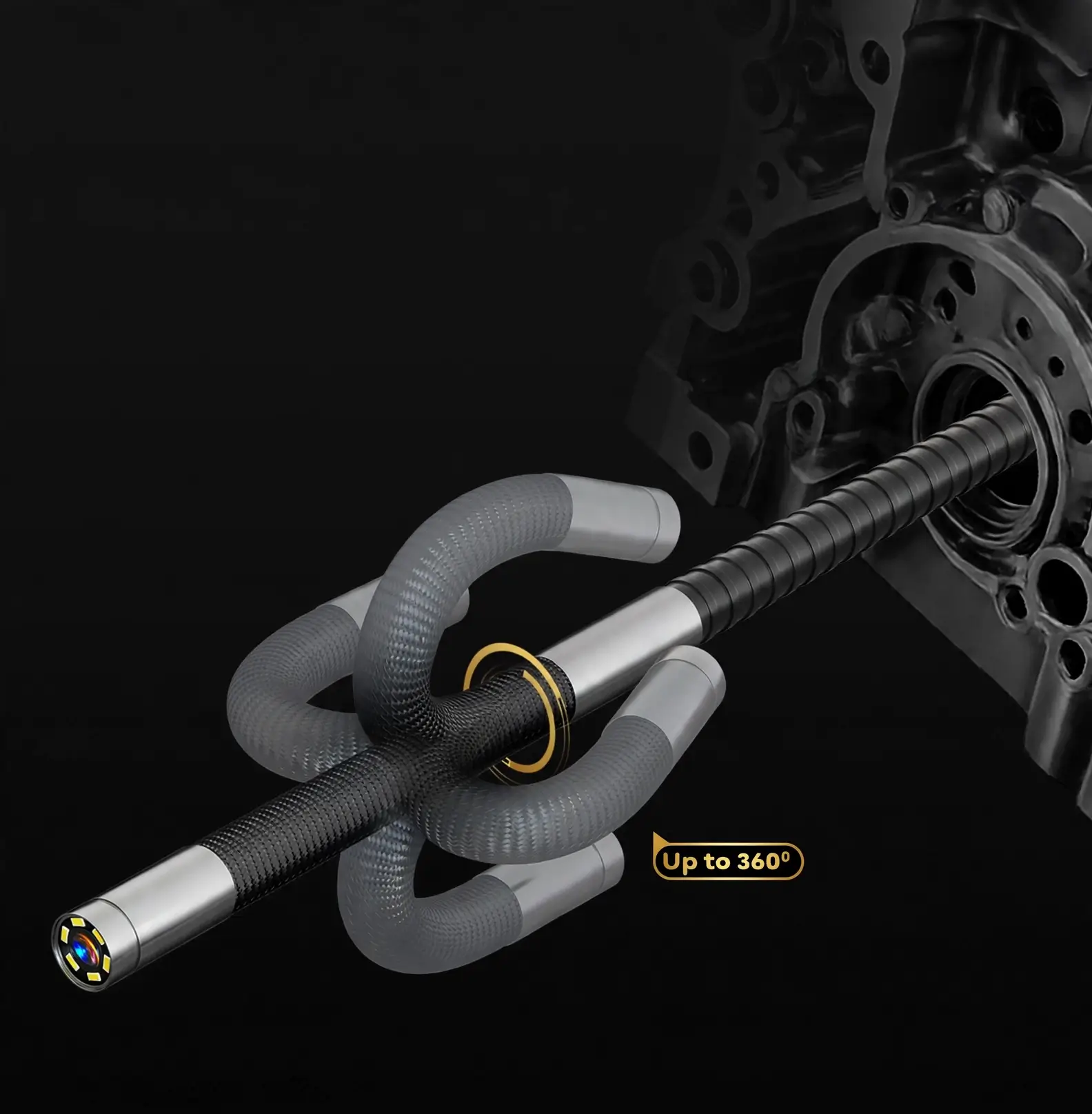

Four-Way 360° Articulation

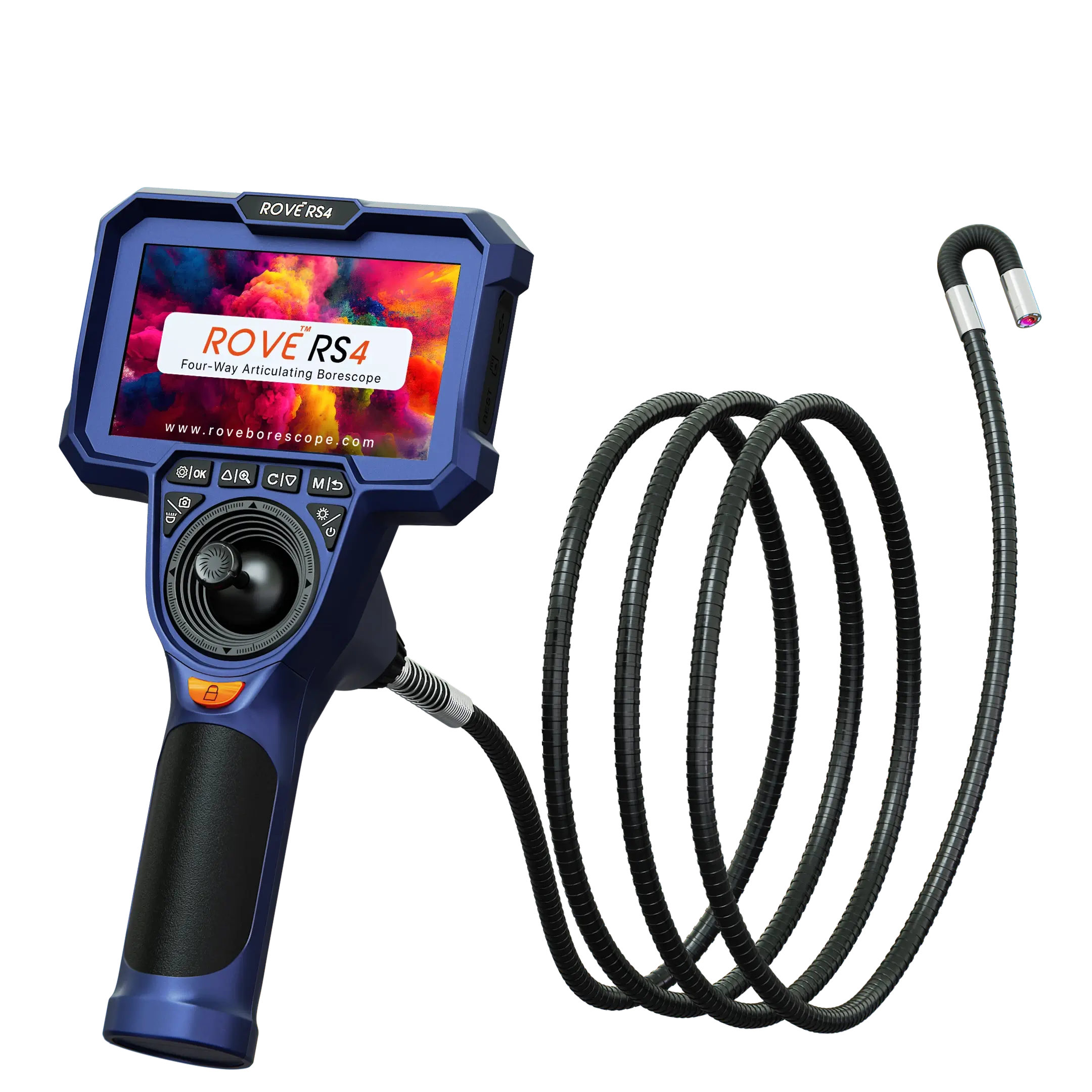

ROVE RS4
See it. Reach it. Fix it.
ROVE RS4 highlights

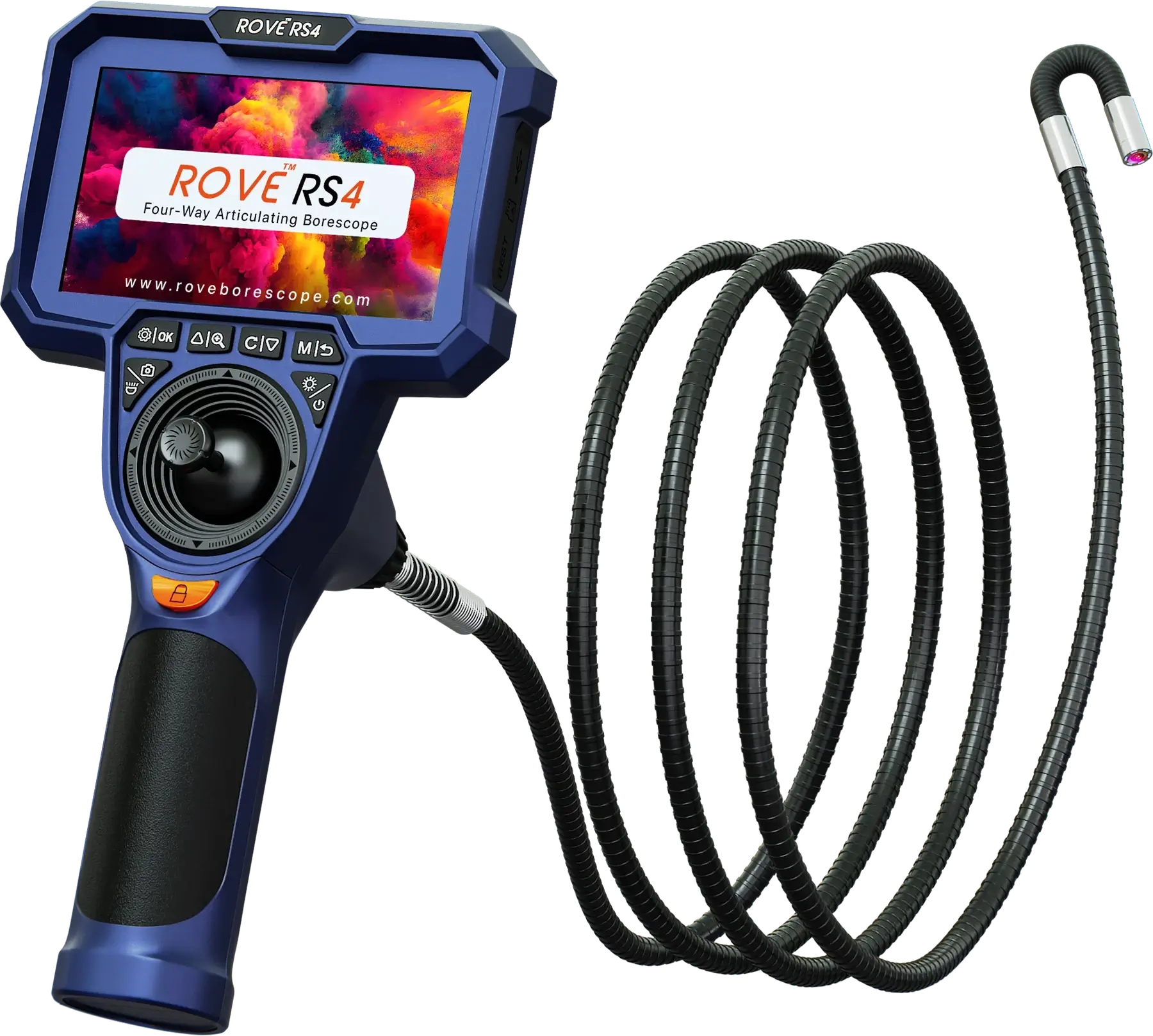

The ROVE RS4 is a professional four-way articulating borescope. Its 6.2mm IP67 probe reaches what hands and phone cameras cannot, while joystick-controlled 360° articulation steers around corners instead of guessing past them. 1080P Full HD on a 4.3-inch IPS display, six probe LEDs for the darkest enclosures, and up to six hours on a replaceable battery. No smartphone, no app, no setup.
1080P Full HD Camera

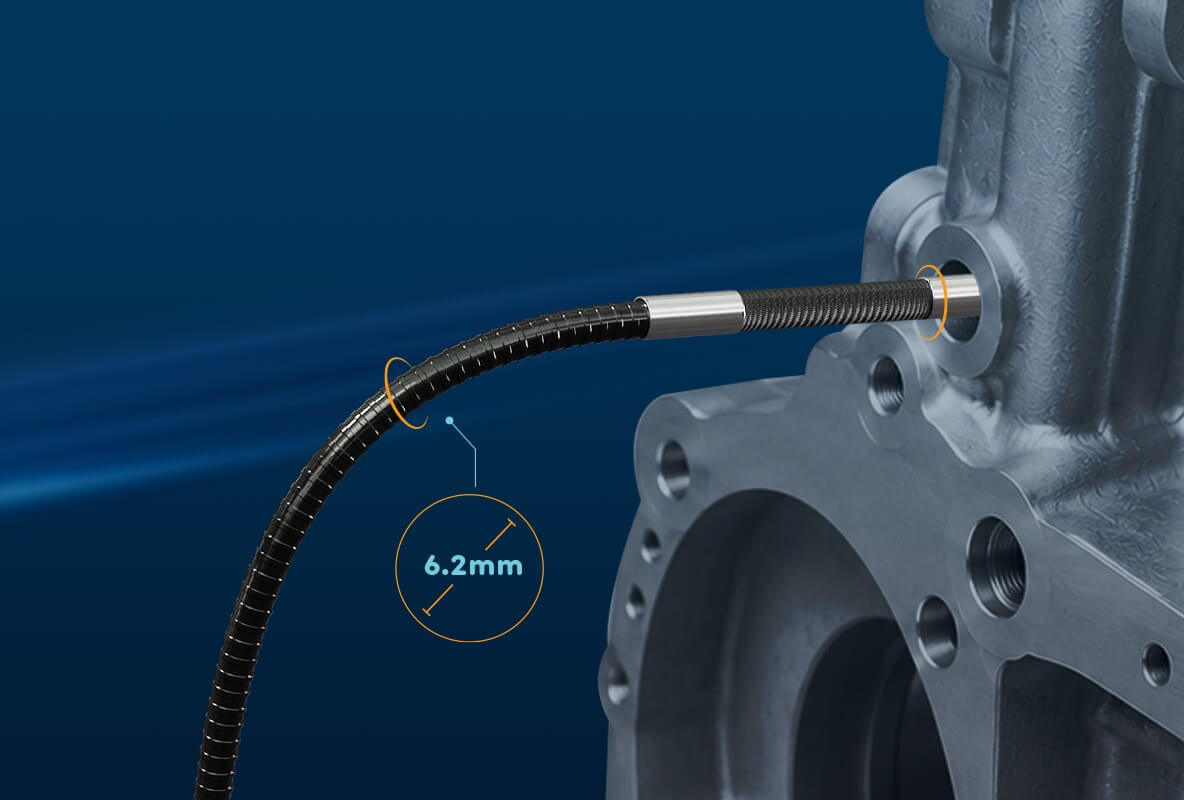

6.2mm Ultra-Slim Flexible Probe

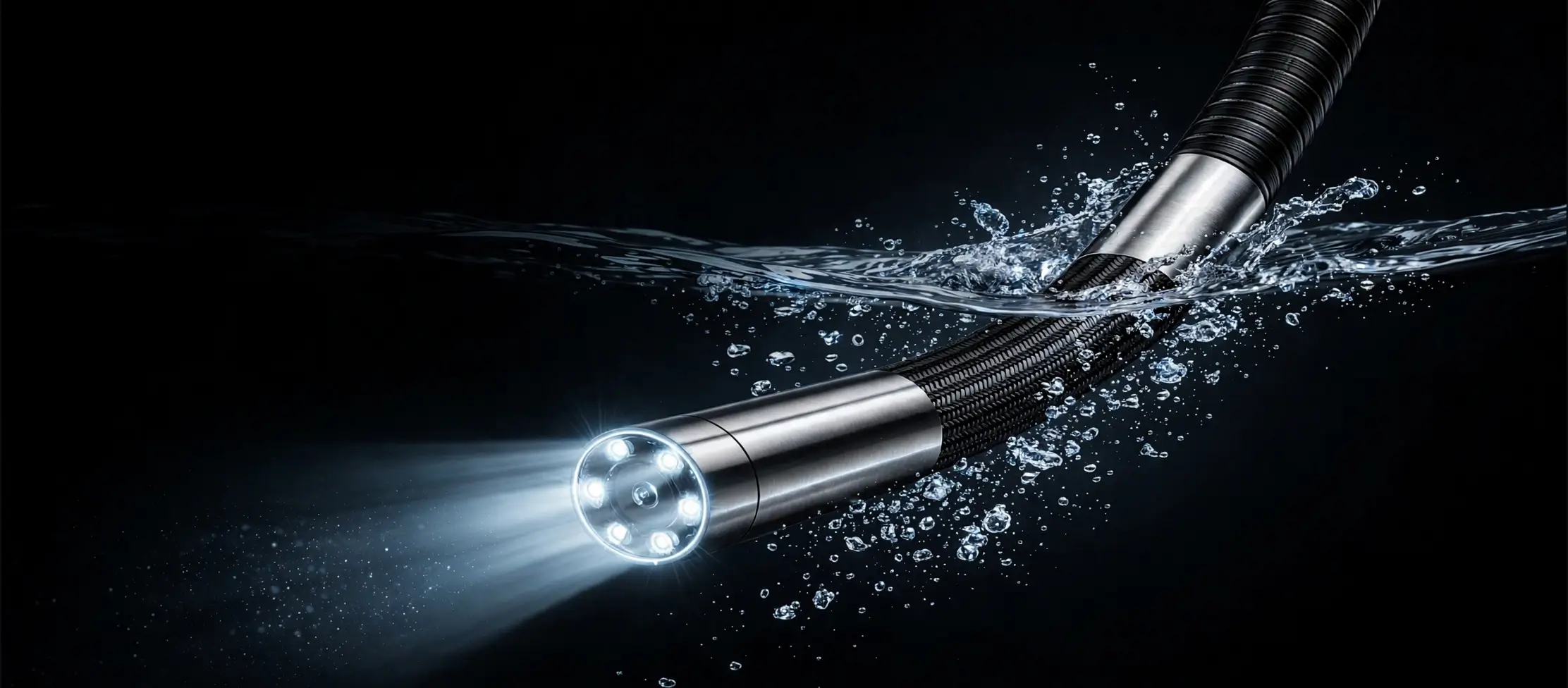

IP67 Waterproof Probe & Camera Head

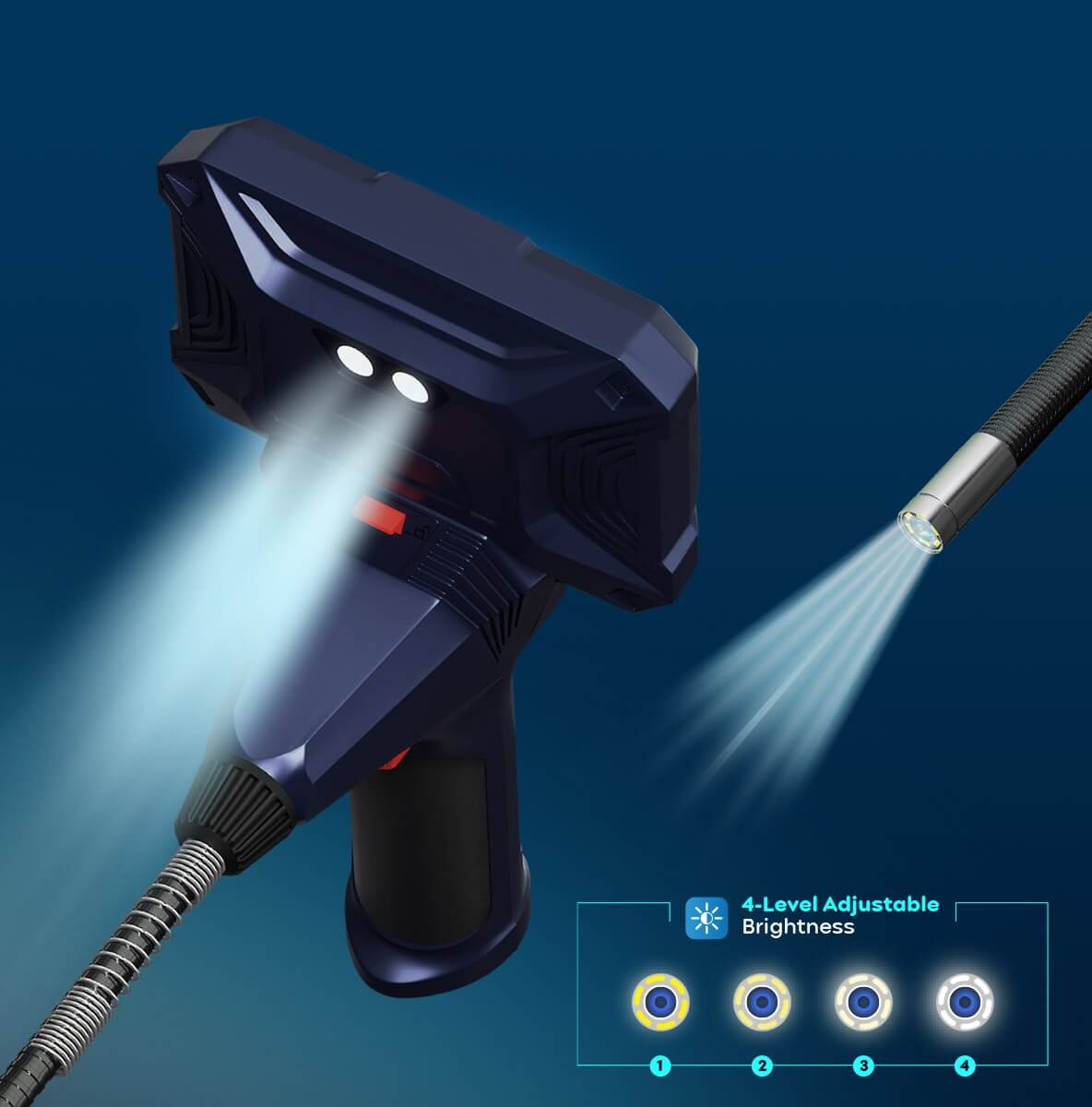

6 Probe LEDs + 2 Work Lights
4.3-Inch IPS Display & Joystick Control
Specifications
Camera
- Sensor
- 1/9" CMOS, 1920×1080
- View Angle
- 90° Wide-Angle Lens
- Focus Range
- 20–100mm
- Frame Rate
- 20 FPS
- White Balance
- Auto
Probe & Articulation
- Camera Diameter
- 6.2mm Ultra-Slim Probe
- Probe Length
- 1.6m Flexible Metal Hose
- Articulating Range
- Four-Way 360° Control
- Articulation Control
- Joystick (Up/Down/Left/Right)
- Min Bend Radius
- ≈ 32mm
- Articulation Life
- ≥ 15,000 Cycles
- Waterproof Rating
- IP67 (Probe & Camera Head)
Display & Interface
- Screen
- 4.3" IPS LCD (480×272)
- Menu Languages
- English, Spanish, German, Japanese, French, Italian, Korean, Russian
- Digital Zoom
- ×2 / ×4
- Operating Mode
- Standalone Handheld Device
Lighting
- Illumination
- 6 Probe LEDs
- Auxiliary Light
- 2 Work Lights (Flashlight)
- Brightness Control
- 4-Level Adjustable
Recording & Storage
- Photo
- JPG, 1920×1080
- Video
- MOV - 1080P / 720P / 480P
- Audio Recording
- Built-in Microphone
- Included Storage
- ROVE INSPECT 32GB microSD
- Max Storage
- 128GB Class-10 / U3
Power
- Battery
- 3.7V / 5000mAh Li-ion (Replaceable)
- Runtime
- Up to ~6 Hours
- Charging
- USB-C, DC 5V 1A–2A
Operating Conditions
- Working Temperature
- 14°F (-10°C) to 131°F (55°C)
- Camera Head Temp
- Up to 176°F (80°C)
- Protection
- High-Temp Alarm & Auto Shutdown
.webp)

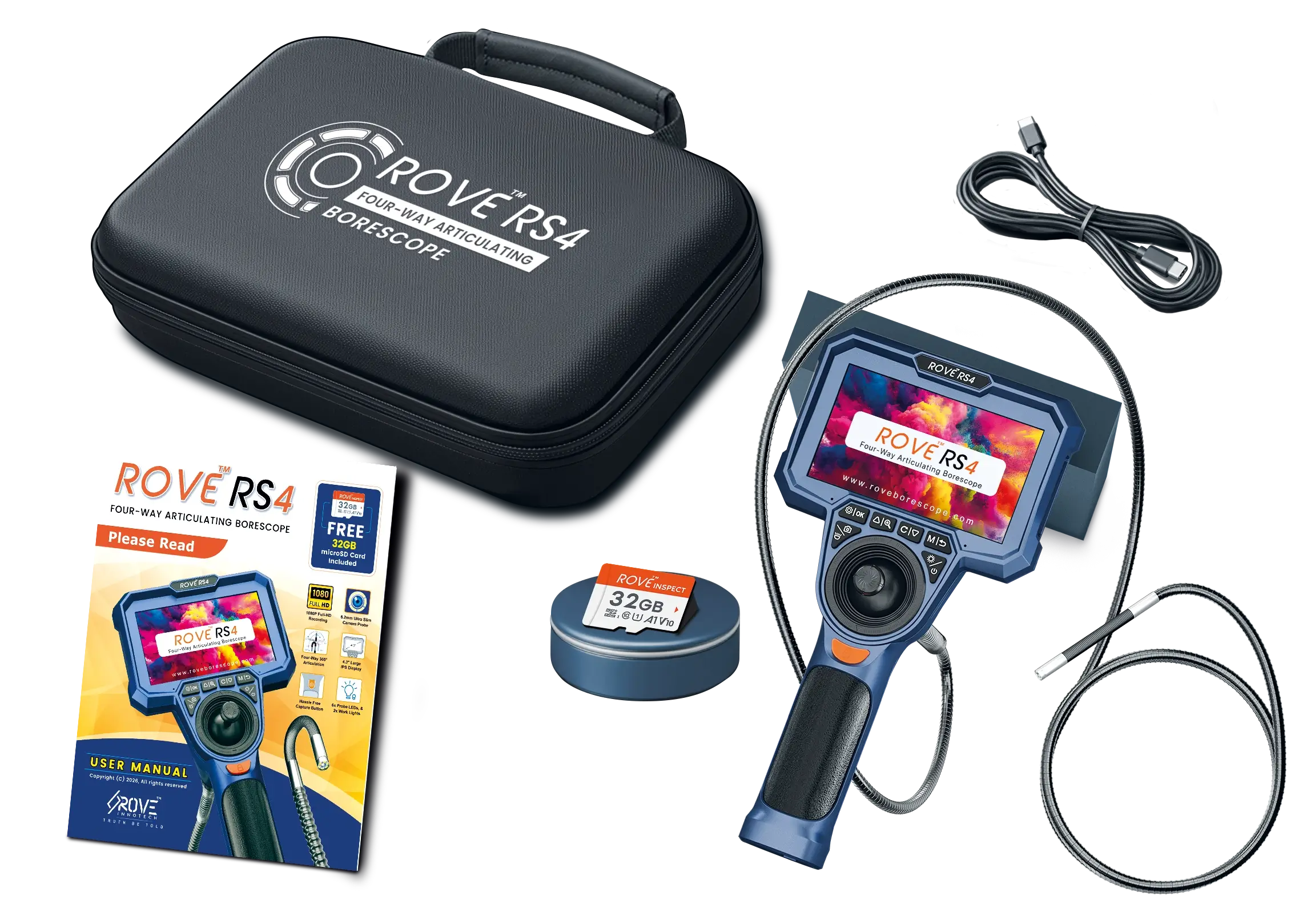

What's in the Box
.webp)
- ROVE RS4 Borescope
- 1.6m Camera Probe (6.2mm lens)
- ROVE INSPECT 32GB microSD Card
- USB-C to USB-C Charging Cable
- Carrying Case
- 2× Cleaning Cloths + Spare Probe Cap
- User Manual & Registration Card
- Quick Start Guide
Both share the same 1080P camera, 6.2mm IP67 probe, and 4.3″ IPS display. The difference is how far the articulation, battery, and storage go - pick the one that matches how you work.

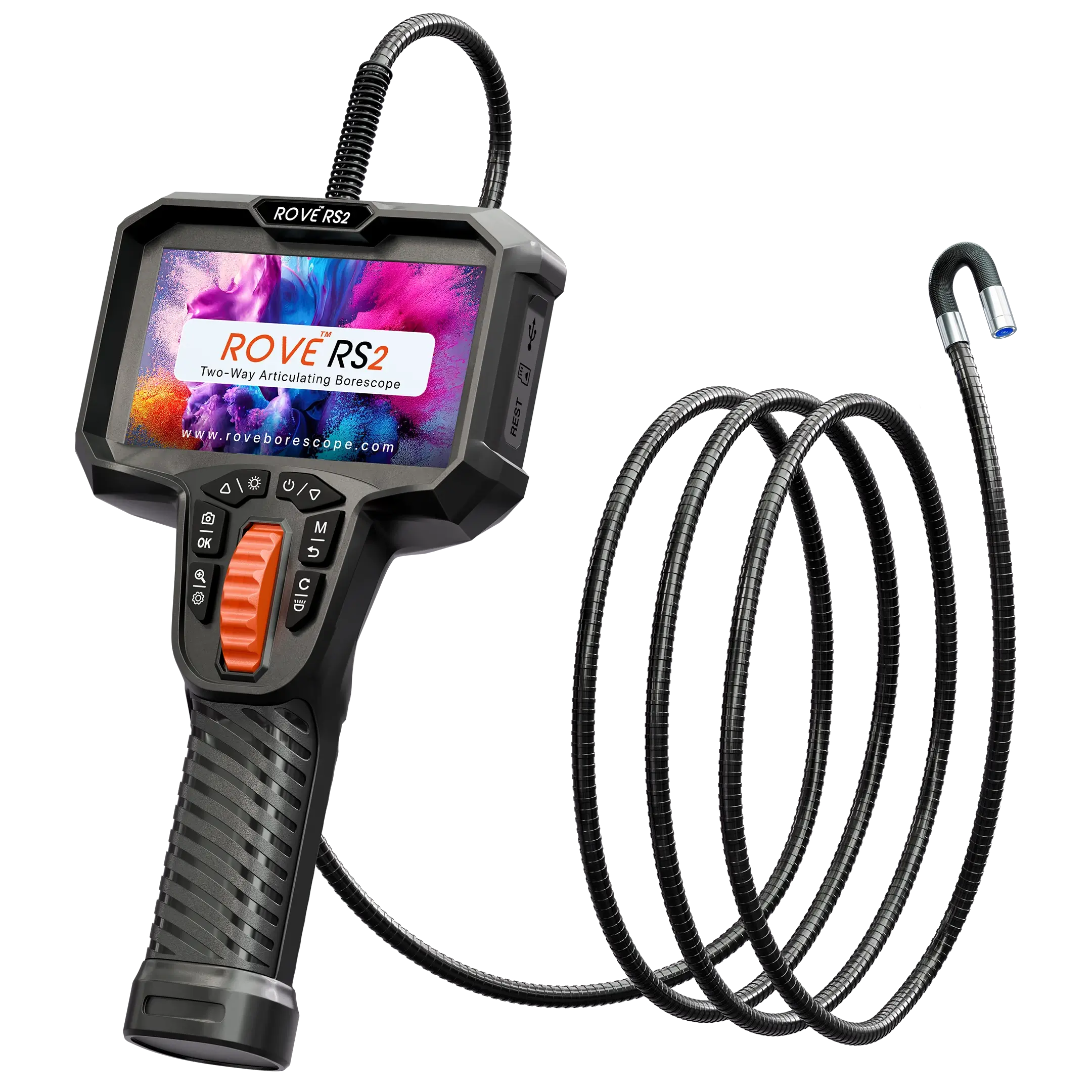

 ROVE RS4 4-Way Articulating Borescope |  ROVE RS2 2-Way Articulating Borescope | |
|---|---|---|
| Articulation | 360° | 210° |
| Camera | 1080P | 1080P |
| Probe Diameter | 6.2mm | 6.2mm |
| Display | 4.3" IPS | 4.3" IPS |
| Probe Length | 1.6m | 1.6m |
| Waterproof | IP67 (Probe) | IP67 (Probe) |
| Battery | 5000mAhUp to 6 Hrs | 2600mAhUp to 4 Hrs |
| Storage | 32GB Included(Free)128GB Max | 32GB Included(Free)64GB Max |
ROVE RS4
- Download PDF - ROVE RS4 User Manual
ROVE RS4 User Manual
Full digital manual - setup, joystick articulation, capture, storage and care.
Frequently asked questions
What makes the ROVE RS4 different from traditional borescopes?
The RS4 features a four-way 360° articulating probe that allows users to inspect around corners and obstacles while maintaining precise joystick control.
Is the RS4 waterproof?
Yes. The probe and camera head are IP67 waterproof, making them suitable for wet inspection environments. The display unit is not waterproof.
How long does the battery last?
The replaceable 5000mAh rechargeable battery provides up to 6 hours of runtime depending on brightness settings and usage.
Does the RS4 record photos and videos?
Yes. It records Full HD photos and videos with built-in audio directly to the included microSD card.
What memory cards are supported?
The RS4 includes a 32GB ROVE INSPECT microSD card and supports Class-10/U3 microSD cards up to 128GB.
ROVE RS4
See it. Reach it. Fix it.
- Four-Way 360° Articulation, Steer Around Anything
- 1080P Full HD Camera With 90° Wide-Angle Lens
- 6.2mm Ultra-Slim IP67 Probe
- 6 Probe LEDs + 2 Work Lights
- Replaceable 5000mAh Battery, Up to 6 Hours
- 32GB Included, Supports Up to 128GB
